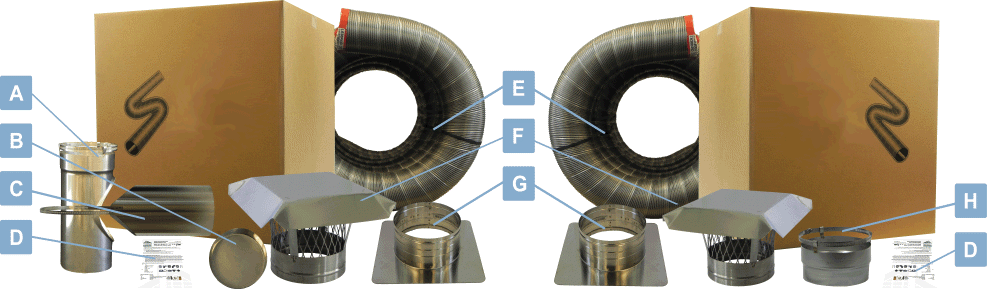

|Each TOP-Flex Liner Kit includes:|
Standard "T" Kit
Basic "Stove Adapter" Kit
BODY for 2-Part Tee:|
Made of 24ga 316 Stainless Steel, Accepts the Top-Flex Liner & secured with a clamp.
Tee End Cap:|
Made of 24ga 316 Stainless Steel, to close off your lining system.
SNOUT for 2-Part Tee:|
Made of 24ga 316 Stainless Steel, with a 10" long removable take-off for easy installation
Easy to read
Installation Instructions & a
Made of .006 Thick, 316 Titanium Stainless Steel, that is UL Listed & Tested to the highest standards!
Made of 24ga 304 Stainless Steel. It keeps the weather & critters out and the sparks in! below.
With a 13"x13" plate size is made of 24ga 304 Stainless Steel. It supports the liner in your chimney *Other options available below.
Made of 24ga 304 Stainless Steel, especially for your stove or fireplace insert.
Optional Top Kits:|
The TOP-Flex Top Kit with a 13"x13" plate size, (shown below Style "A") is included in the Standard "T" Kit and the Basic "Stove Adapter" Kit at no additional charge, however if you need a larger size plate or prefer the EZ Flue Fit Top Kit design (shown below Style "B"), please select ONE item below from the Top Kit Style of your choice. This will replace the Top Kit included with your kit.
(Please note the additional cost will be added to your kit price above at checkout):
TOP-Flex Top Kit - UPGRADEManufactured with 24ga Stainless Steel:
TOP-Flex EZ Flue Fit Top Kit - UPGRADE
Manufactured with 24ga Stainless Steel:
How do I know what size DIAMETER & LENGTH Chimney liner I need?
For Hot Water Heaters and Oil Furnaces the ideal diameter of the Chimney liner needed to vent your appliance is the size on your unit. For example, if it has a 6" opening where the pipe is to be inserted, that is the ideal size Chimney liner you need. However, the interior of your chimney (especially after insulating) may not have the adequate space. With the use of an increaser / reducer, according to the safety codes, you may be able to go up or down one size and your unit should still function appropriately. To measure the length you need, measure from the top of the chimney flue tile or crown, down to the thimble where the liner will come through your wall to hook up to your appliance.
For your Fireplace, you need to calculate the maximum size flue liner you can install.
At the chimney crown, on your roof, you need to measure the inside diameter of your existing flue opening. Next, inside your home, measure the height and width of your fireplace opening. Refer to our Fireplace Sizing Chart to help you find the liner diameter size you need.
If you are relining for a Woodstove, Corn or Wood Pellet Stove you need to measure from the top of the chimney crown down to where you will hook-up the stove. For the diameter liner size, you will need to measure the inside dimension of the exhaust on your stove.
What if I have 2 or more appliances venting through the same "chimney"?
If you currently have two existing flues in your chimney and you are leaving the "flue tiles" in, treat each "flue" separately depending on if it is a Fireplace, Fireplace Insert, Furnace, Water Heater, or Wood, Corn or Wood Pellet Stove and order the liner appropriate for that application. If the flue tiles are cracked, deteriorating, or missing mortar joints between them, we recommend removing them before installing a TOP-Flex or TOP-Rigid Chimney Liner. Always make sure the flue tiles are entirely cleaned & free of creosote before installing any liner.
What if I have 2 or more appliances venting into one "flue"?
It is possible to have a gas & oil appliance vented through the same flue, if so you should use a TOP-Flex 316TI liner. Depending on how this is terminated at the bottom of your chimney you may need to stack one tee on top of the other and will need to order an "OD" 2-Part Tee. Depending on distance between your units, you have to run a piece of liner between the two tees, you will need to order an additional"ID" 2-Part Tee.
Do I need to replace the clay flue tiles before installing TOP-Flex or TOP-Rigid Chimney Liner?
No, our Chimney liners are made to replace the clay flue tiles. They will protect your chimney better from heat loss or gain and reduce your chance of having a chimney fire. With proper cleaning & maintenance you should never have to replace it again!
What if I have to stack or attach two tees together because I have two appliances to hook-up?
Your Chimney liner kit will come with a tee. That will be the tee you connect to your liner. You then need to order an additional "OD" 2-part tee. That tee will connect to the bottom of your first tee. (This does not apply to Pellet Tees).
