FIREPLACE VENTING INFORMATION

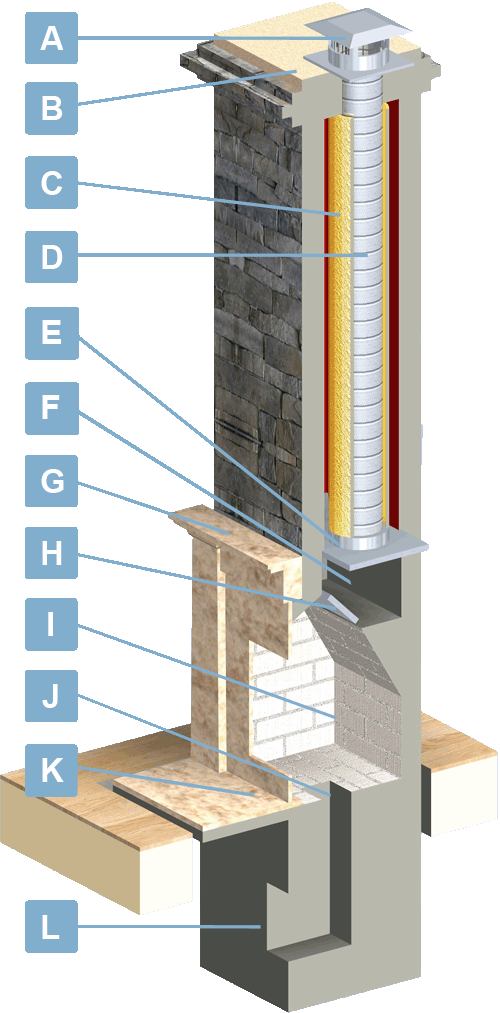

A complete diagram to show what you may need


= Items included in kits || = Shown in diagram

CHIMNEY CAP
Choice of:
  • TOP KIT
  • RAIN CAP
    Will also need TOP CLAMP + STORM COLLAR + TOP PLATE , -or- EZ TOP PLATE , -or- EZ FLUE FIT TOP PLATE
  • SINGLE FLUE CAP
  • MULTI FLUE CAP
  • DAMPERS

  • CROWN
    Item shown for identification only. We do not supply.

    LINER INSULATION
    Choice of:
  • BEST WRAP Insulation Kit
  • BEST MIX Insulation

  • CHIMNEY LINER
    Choice of:
  • TOP-Flex Wood Liner
  • TOP-Rigid Wood Liner

  • BOTTOM PLATE
    Choice of:
  • TOP-Flex Bottom Plate

  • SMOKE CHAMBER
    Item shown for identification only. We do not supply.

    MANTEL
    Item shown for identification only. We do not supply.

    FIREPLACE DAMPER
    Item shown for identification only. We do not supply.

    ASHPIT DOOR
    Item shown for identification only. We do not supply.

    HEARTH
    Item shown for identification only. We do not supply.

    CLEAN OUT DOOR
    Choice of:
  • Clean Out Door


  • Choose a venting method for more information on what you may need. Fireplace Venting
