WOOD, CORN & WOOD PELLET VENTING INFORMATION

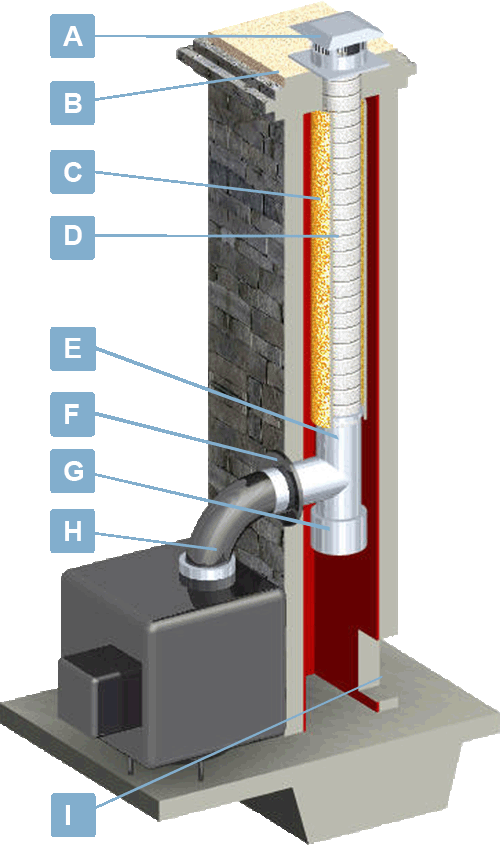

A complete diagram to show what you may need


= Items included in kits || = Shown in diagram

CHIMNEY CAP
Choice of:
  • TOP KIT
  • RAIN CAP
    Will also need TOP CLAMP + STORM COLLAR + TOP PLATE , -or- EZ TOP PLATE , -or- EZ FLUE FIT TOP PLATE
  • SINGLE FLUE CAP
  • MULTI FLUE CAP

  • CROWN
    Item shown for identification only. We do not supply.

    LINER INSULATION
    Choice of:
  • BEST WRAP Insulation Kit
  • BEST MIX Insulation

  • CHIMNEY LINER
    Choice of:
  • TOP-Flex Wood Liner
  • TOP-Rigid Wood Liner
  • TOP-Flex Corn & Wood Pellet Liner

  • TEE w/ REMOVABLE SNOUT
    Choice of:
  • TOP-Flex 2 Part Tee
  • TOP-Rigid 2 Part Tee
  • TOP-Flex Corn & Wood Pellet Tee

  • BLACK TRIM COLLAR
    Choice of:
  • HEAT FAB 22 Gauge Black Wall
    Trim Collar

  • TEE END CAP
    Choice of:
  • TOP-Flex Tee End Cap
  • TOP-Rigid Tee End Cap
  • TOP-Flex Corn & Wood Pellet Tee End Cap

  • SINGLE WALL BLACK STOVEPIPE
    Choice of:
  • HEAT FAB 22 Gauge Single Wall Black Stovepipe

  • CLEAN OUT DOOR
    Choice of:
  • Clean Out Door
